Prairie to Peaks Mail & Shipping Solutions
Mail & Shipping/ Envelope Inserters/ 6608 Series
6608 Series inserters for mid-volume mailrooms that need modular scale.
Configure up to 7 feed stations, run a larger 10" touchscreen, and process up to 80,000 pieces a month without stepping up to a full production system.
Prairie to Peaks reviews your document mix and monthly volume so the recommendation between the 6406, 6608, and 7104 fits your real mailroom.
Up to 4,300
envelopes/hour
Up to 80,000
envelopes/month
2 to 7
feed stations
10" screen
graphics-based
Modular Up to 7 Stations
The widest configuration range in the 6000-class lineup.
Mid-Volume Mailrooms
Built for offices approaching 80,000 pieces a month.
Larger Envelope Hopper
Holds up to 500 envelopes, versus 325 on smaller models.
Booklet Capable
Optional thin booklet feeder inserts booklets up to 2.5mm thick.
6608 Series at a Glance
The modular step between office inserting and true production mail.
The 6608 Series is built for mailrooms that need real capacity and flexibility, but aren't ready for a full production platform like the 7104 or 7700 Series.
Up to 7 feed stations
Configure a high-capacity document feeder (up to 725 sheets), one or two production feeders, standard/special feeders, and short feed trays.
10" graphics touchscreen
A larger control panel than the 6406 Series, still with AutoSet automatic setup and up to 50 programmable jobs.
Bigger envelope hopper
Holds up to 500 envelopes and refills on-the-fly, reducing how often an operator has to stop the run.
Optional booklet feeding
A thin booklet feeder option lets the 6608 handle booklets, not just flat sheets, up to 2.5mm thick.
Optional intelligent scanning
A CIS scanner option reads OMR, 1D/2D barcodes, QR, and OCR anywhere on the page for automated matching.
Product Views
See the parts that affect your mail flow
These views show feeding, job control, output handling, and the option for booklet inserts on a 6608 configuration.
Modular Feed Stations
Configure up to 7 stations to match your document mix, from standard sheet feeding to production-grade capacity.
Specs to know
- 2 to 7 configurable stations
- Each standard feeder up to 325 sheets
- High-capacity document feeder up to 725 sheets
Thin Booklet Feeder
An optional feeder inserts booklets alongside standard sheets, useful for benefit packets, brochures, and multi-page mailers.
Specs to know
- Inserts booklets up to 2.5mm thick
- Field-installable high-capacity feeders available
- Combines with sheet and card feeding on the same run

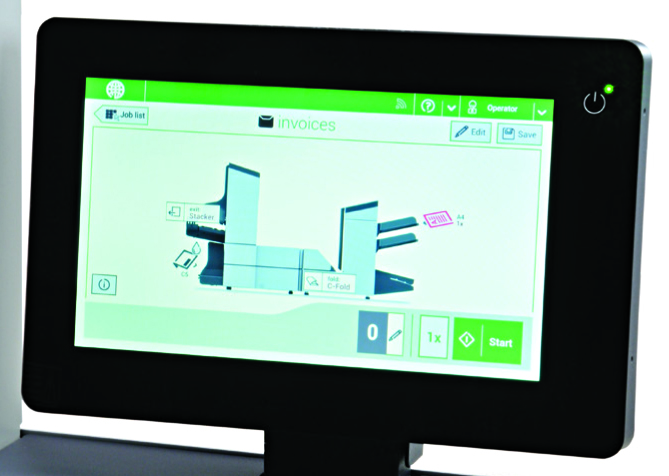

10" Touchscreen Control
A larger graphics-based touchscreen than the smaller 6000-class models, with AutoSet and job memory built in.
Specs to know
- 10" full-color touchscreen
- AutoSet automatic setting adjustment
- Stores up to 50 programmable jobs

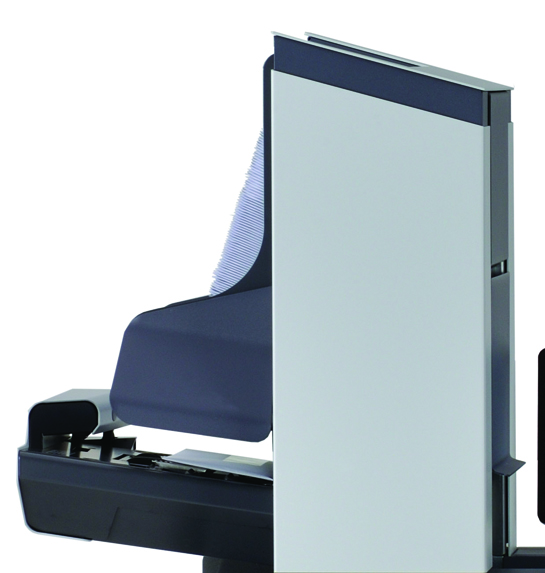

High-Capacity Output
A larger envelope hopper and vertical output stacker keep mid-volume runs moving with fewer interruptions.
Specs to know
- Envelope hopper up to 500, top loading
- Vertical output stacker up to 500 filled envelopes
- Speed up to 4,300 pieces per hour, #10 envelopes
Specifications can vary by configuration, media, envelopes, inserts, and options. Prairie to Peaks can review your actual mail pieces before recommending the final setup.
Best Fit
The 6608 Series is the ceiling of the 6000-class before stepping into true production.
Buyers here usually have outgrown a 6406 configuration, need to insert booklets alongside sheets, or are running close to daily production-level volume without wanting the footprint of a 7000-class system.
If your monthly volume regularly exceeds 80,000 pieces, the 7104 Series is the natural next conversation.
Good fit if you are mailing:
- Mid-volume mail approaching 80,000 pieces a month
- Jobs that combine booklets with standard sheet inserts
- Multiple document types needing up to 7 feed stations
- Runs where minimizing hopper refills matters for uptime
Consider the 7104 Series instead if:
- Monthly volume is regularly above 80,000 pieces
- You need up to 17 feed stations across 8 modules
- You want an accumulator/divert deck and output conveyor
- You need unlimited programmable jobs and a 22" touchscreen
Specifications
6608 Series specifications and configuration
Performance
Spec sheet- Speed
- Up to 4,300 pieces per hour (#10 envelopes)
- Duty cycle
- Up to 80,000 pieces per month
- Stations
- 2 to 7, configurable
- Feeder capacity
- Up to 325 sheets each (20#); up to 725 production feeder
- Envelope hopper
- Up to 500 envelopes, top loading
- Output stacker
- Up to 500 filled envelopes, reverse stacking
- Paper / envelope size
- 3.5"-14" L x 5.1"-9" W paper; 6.3"-9.7" L x 3.5"-6.3" W envelope
- Dimensions (4-station)
- 60" L x 31" H x 18" D
- Weight (4-station)
- Approx. 242 lbs.
- Power
- 100 V AC, 50/60 Hz; UL, CE approved
Configuration notes
Fit review- Available configurations
- Standard 2 through Standard 4+, special feeder options
- Best use range
- Mid-volume mailrooms nearing production-level output
- Folding capacity
- Up to 10 sheets half-fold; up to 8 sheets tri-fold
- Fold types
- C, Z, half, double parallel, no fold
- Document integrity
- Electromechanical double document detectors, unaffected by paper color or dust
- Exception handling
- Divert station for documents requiring inspection
- Media testing
- Paper, envelopes, inserts, and booklets should be tested before final configuration
Standard Features
Included features and what they mean
Standard across all 6608 Series station configurations.
| Standard item | What it means for your workflow |
|---|---|
| 10" color touchscreen | Larger graphics-based interface for setup, prompts, and job monitoring. |
| AutoSet™ setup | Load material and let the inserter measure and set paper, fold, and envelope parameters. |
| 50 programmable jobs | Fast, consistent setup for recurring or frequently processed applications. |
| 500-envelope hopper | Larger capacity than smaller 6000-class models, refillable on-the-fly. |
| Divert station | Automatically delivers flagged documents out of the run. |
| Cascade mode | Links feeders so the next one starts automatically when one empties. |
| Auto standby mode | Activates energy-saving standby after 1 hour of idle time. |
Optional Upgrades
Optional equipment and software
Review these when booklets, scanning, or output handling matter for your job.
| Optional item | What it adds |
|---|---|
| Thin Booklet Feeder | Inserts booklets up to 2.5mm thick alongside standard sheet inserts. |
| CIS Scanner | Reads OMR, 1D/2D barcodes, QR, and OCR anywhere on the page for automated matching. |
| High-Capacity Production Feeders | Field-installable feeders for higher-volume feeding needs. |
| Short Feed Trays | For smaller inserts or BREs that don't need a full feeder. |
| Side Exit Tray | Alternate output handling for layout or workflow needs. |
| Custom Cabinets / 402 Series Joggers | Storage, staging, and pre-jogging support for the mailroom layout. |
Need up to 17 feed stations, an output conveyor, or volume above 80,000 pieces a month? The 7104 Series is the next step up into true production inserting.
Compare by Volume and Complexity
Will a different model work better for you?
Use this section as a quick guide, not a final answer.
6406 Series
Flexible2-6 stations
Fewer stations and a smaller 7" touchscreen than the 6608.
View 6406 Series →6608 Series
You Are HereUp to 80,000/month
Modular up to 7 stations, 10" screen, and optional booklet feeding.
Currently Viewing
7104 Series
ProductionUp to 180,000/month
Modular production platform with up to 17 feed stations and an output conveyor.
View 7104 Series →
Full Lineup
Compare AllAll 7 models
See every inserter from entry-level tabletop through high-volume modular production.
View All Inserters →Review whether the 6608 Series is the right level.
Share your volume, document types, inserts, envelope sizes, and current hand work. Prairie to Peaks will help determine whether the 6608 Series, 6406 Series, 7104 Series, or another option is the best next step.
